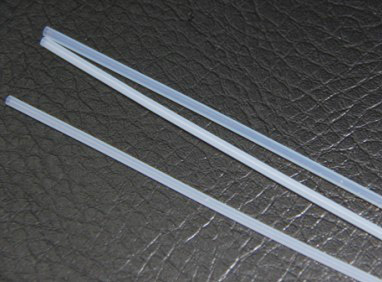

PTFE热缩套管4:1

PTFE Heat Shrink has ratios 2:1 and 4:1. The product requires 650°F +/- 25° (340°C +/- 5°) to recover. We recommend pre-heating large diameter mandrels and giving sufficient time for recovery. The mandrel being covered must be able to withstand this range of temperature, and even heating and cooling of all sides will provide the best result. Customized Sub-Lite- Wall® sizes are also available.

Approximate Ratio of Expanded I.D. to Recovered I.D. (fractional inch sizes)

Recovered - After Heat Shrink

Ordered as I.D. (inches/mm)	Expanded I.D. MIN. (inches/mm)	I.D. Max. (inches/mm)	Wall Thickness (inches/mm)
5/64	0.078	0.025	0.009	+/- 0.002
1/8	0.125	0.037	0.012	+/- 0.002
3/16	0.187	0.050	0.012	+/- 0.002
1/4	0.250	0.063	0.012	+/- 0.002
5/16	0.312	0.078	0.012	+/- 0.002
3/8	0.375	0.096	0.012	+/- 0.002
7/16	0.438	0.112	0.012	+/- 0.002
1/2	0.500	0.144	0.015	+/- 0.004
9/16	0.562	0.155	0.015	+/- 0.004
5/8	0.625	0.178	0.015	+/- 0.004
11/16	0.687	0.198	0.015	+/- 0.004
3/4	0.750	0.224	0.015	+/- 0.004
7/8	0.875	0.244	0.015	+/- 0.004
1	1.000	0.278	0.015	+/- 0.004
1-1/4	1.250	0.347	0.015	+/- 0.004
1-1/2	1.500	0.400	0.015	+/- 0.004
1-3/4	1.750	0.450	0.015	+/- 0.004
2	2.000	0.520	0.020	+/- 0.005
2-1/4	2.250	0.585	0.020	+/- 0.005
2-1/2	2.500	0.650	0.020	+/- 0.005
2-3/4	2.750	0.710	0.020	+/- 0.005
3	3.000	0.775	0.020	+/- 0.005
3-1/4	3.250	0.835	0.020	+/- 0.005
3-1/2	3.500	0.900	0.025	+/- 0.005
3-3/4	3.750	0.960	0.025	+/- 0.005
4	4.000	1.025	0.025	+/- 0.005
